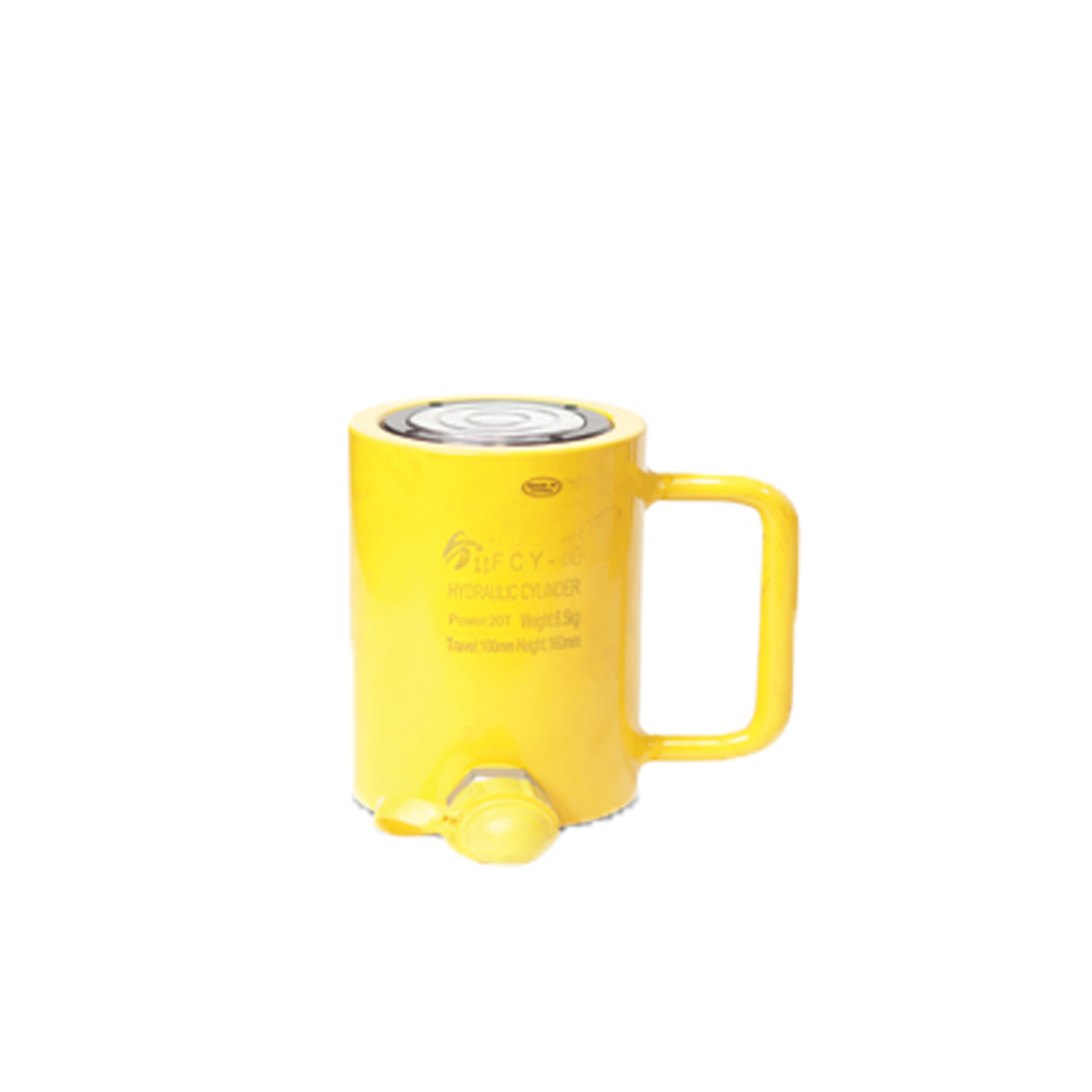

Hydraulic Cylinder 30T (FCY)
Model: FCY-30
Tonnage: 30 T
Cylinder Area: 50.24 CM²
Inside Cylinder Diameter: 80 MM
Outside Cylinder Diameter: 108 MM
Travel/Stroke Length: 100 MM
Weight: 9.6 KG
Collapsed Height: 164 MM
Remark: CP-700-2
Hydraulic Cylinder is a mechanical actuator that converts hydraulic pressure into linear force and motion, commonly used for lifting, pushing, or pressing heavy loads.
